Mixers
- Home
- Mixers

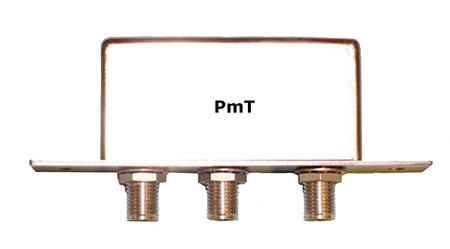

picture of a slot in model (Surface Mount not shown)
Features:
- Watkins-Johnson Replacements
- Compact Frequency Mixers
- DC to 3000 MHz
- Low AmplituPassive diode mixersde and Phase Errors
- Available in many different housing and sizes.
Replacing a discontinued component, such as a mixer, in an existing design can pose challenges when a trusted part is no longer available. Fortunately, in this case a excellent substitute by minicircuit was found, which does not sacrifice in system performance.
| Replacement finder: | ||||
| Model | RF Range | IF Range | RF Range | IF Range |
| PmT-1400B-10 | 1-2200 | 1-2200 | 5-3000 | 5-1500 |
| PmT-1400B-13 | 1-2200 | 1-2200 | 5-3000 | 5-1500 |
| PmT-1400B-17 | 1-2200 | 1-2200 | 5-3000 | 5-1500 |
| PmT1000H | 1-2700 | 1-2000 | 5-3000 | 5-1500 |
| PmT1010 | 1-2500 | 1-2000 | 5-3000 | 5-1500 |
| PmT1020H | 1-2700 | 1-2000 | 5-3000 | 5-1500 |
| PmT1030H | 10-2500 | 10-2500 | 80-2500 | DC-1000 |
| PmT1050H | 10-3000 | 10-3000 | 5-3000 | 5-1500 |
| PmT1070H | 10-1000 | 10-1000 | 10-1000 | DC-1000 |
| PmT3000 | 10-1500 | 10-1500 | 5-2500 | 5-1500 |
| PmT3010 | 10-1000 | 10-1000 | 5-1000 | DC-1000 |
| PmT3020 | 10-250 | 10-250 | 2-600 | DC-600 |
| PmT3030 | 10-250 | 10-250 | 2-600 | DC-600 |
| PmT slot in Mixer: Datasheet | ||||
